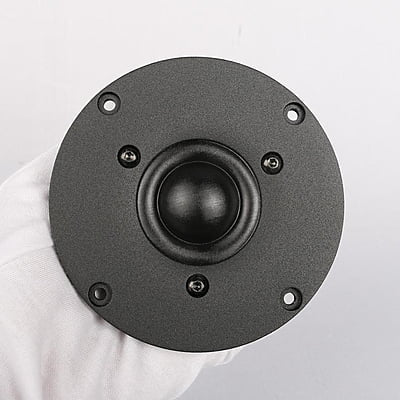

SB Acoustics SB29SDAC-C000-4 29mm Textile Dome Tweeter
Rs. 4,900.00
/
Sold out
Price Includes GST
Features
- Large surround dome for increased acoustic output
- Dual balanced compression chamber for improved dynamics
- Copper cap for reduced voice coil inductance and minimum phase shift
- Saturation controlled motor system for low distortion
- Non-reflective rear chamber with optimized damping for improved dynamics
- Flow optimized vented pole piece for optimum coupling to rear chamber
- CCAW voice coil for low moving mass
- Long life silver lead wires
- Low resonance frequency
- Cast aluminium faceplate
Specifications
- Nominal Impedance 4 ?
- DC resistance, Re 3.0 ?
- Voice coil inductance, Le 0.05 mH
- Effective piston area, Sd 9.6 cm2
- Voice coil diameter 29 mm
- Voice coil height 2.0 mm
- Air gap height 2.5 mm
- Linear coil travel (p-p) 0.5 mm
- Moving mass incl. air, Mms 0.45 g
- Free air resonance, Fs 600 Hz
- Sensitivity (2.83 V / 1 m) 93 dB
- Mechanical Q-factor, Qms 2.94
- Electrical Q-factor, Qes 1.09
- Total Q-factor, Qts 0.8
- Force factor, Bl 2.4 Tm
- Rated power handling* 60 W
- Magnetic flux density 1.1 T
- Magnet weight 0.22 kg
- Net weight 0.5 kg
* IEC 268-5, high-pass Butterworth, 2600 Hz, 12 dB/oct.
