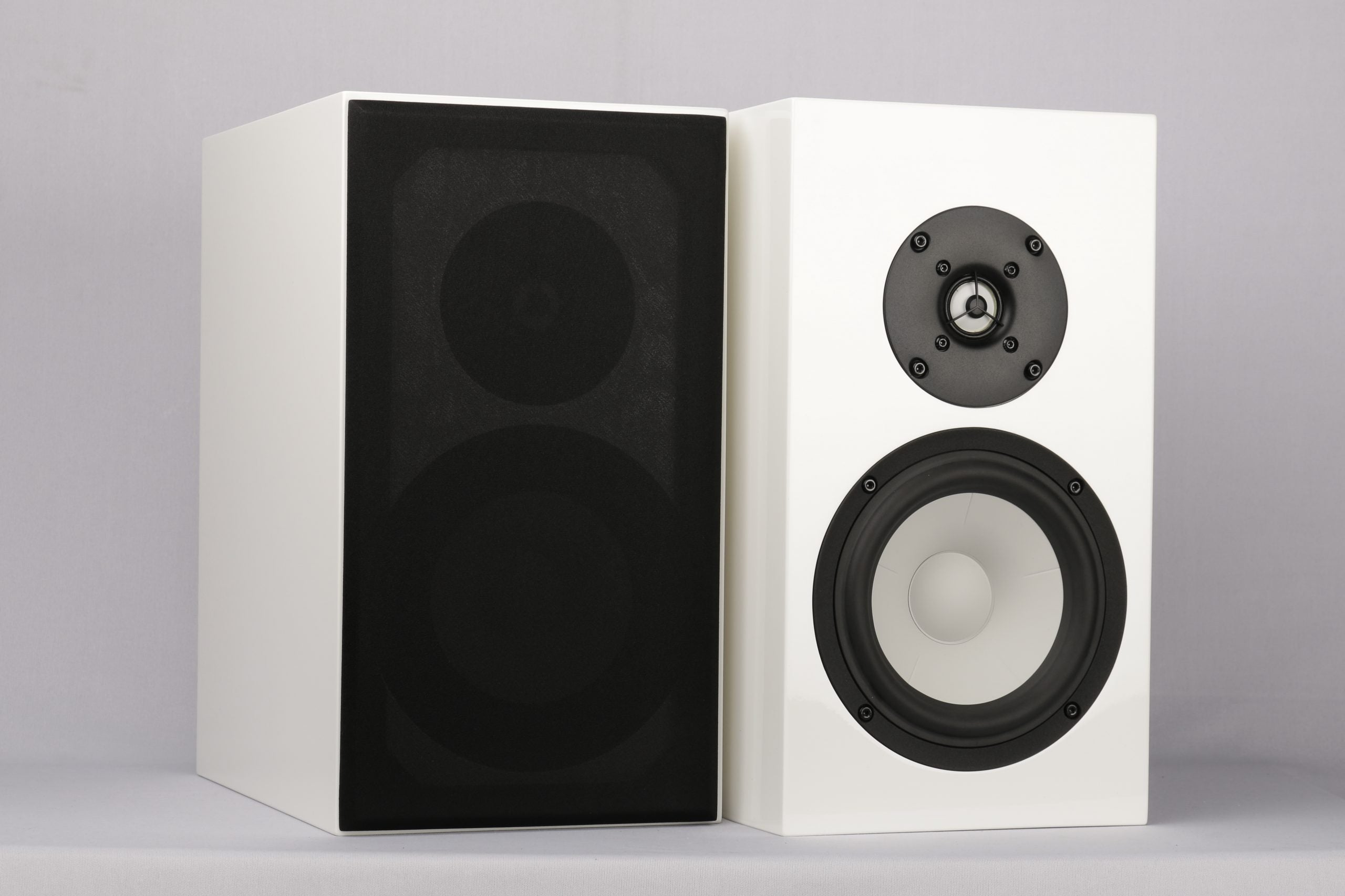

SB Acoustics Bromo Speaker Kit - Pair
Bromo is an active volcano in East Java, Indonesia and the name Bromo is derived from The Hindu creator of God. The aspirations of this speaker are clearly set very high.
It is a 2-way ported compact speaker showcasing hard cone material diaphragms. The drivers are known for very high performance, low distortion and unique price-performance ratio. The NBAC (aluminum) midwoofers and CAC (ceramic) woofers can both be used with the same crossover designed for this speaker. The tweeter ADC (aluminum) and CDC (ceramic) are also interchangeable. Though the specifications are similar, both setups are audibly different. The ceramic diaphragm drivers adds a step up in clarity to most ears.
This is a hard cone/dome speaker but without the typical ‘issues’ as audible breakups of the mid-woofer and the tweeter never get too harsh on the ears. This SB Acoustics developed speaker lowers coloration through a braced cabinet with minimised and evenly distributed vibrations of the MDF panels. The speaker is nicely detailed and more ‘punchy’ than that was expected from this cabinet size. The speakers were showcased at the Axpona Show 2019 in Chicago and received overwhelming positive feedback.
Open Source Kit
This means SB Acoustics has developed this kit, build it, tested it and is proud of the performance. All development details are available online, including crossover schematics, but SB Acoustics will not supply cabinets and finished crossover for open source kits.
Builders have the freedom to choose their preferred crossover components. Thus, be aware any changes of components, will change the performance from its ‘original’ sound.
Specs
- Frequency Range 45 – 24000 Hz
- Sensitivity ( 2.83V / 1m ) 84 dB
- Nominal Impedance 5Ω
- Max SPL 105 dB
- Recommended Amplifier 50 – 150 W
- Crossover Frequency 3000 Hz
- Enclosure Type Bass reflex
- Port tuning Frequency 38 Hz
