SB Acoustics

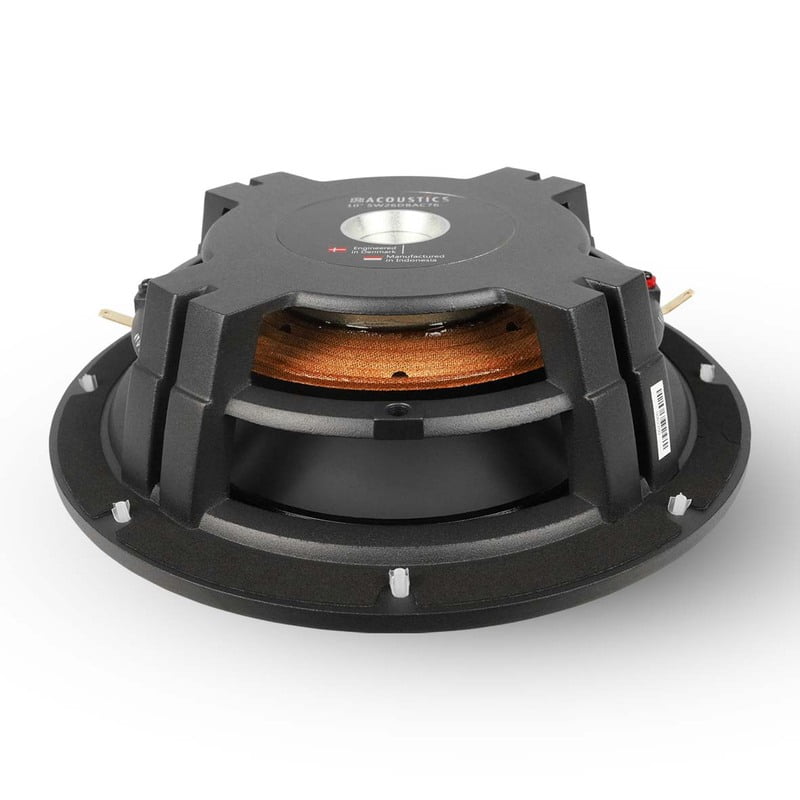

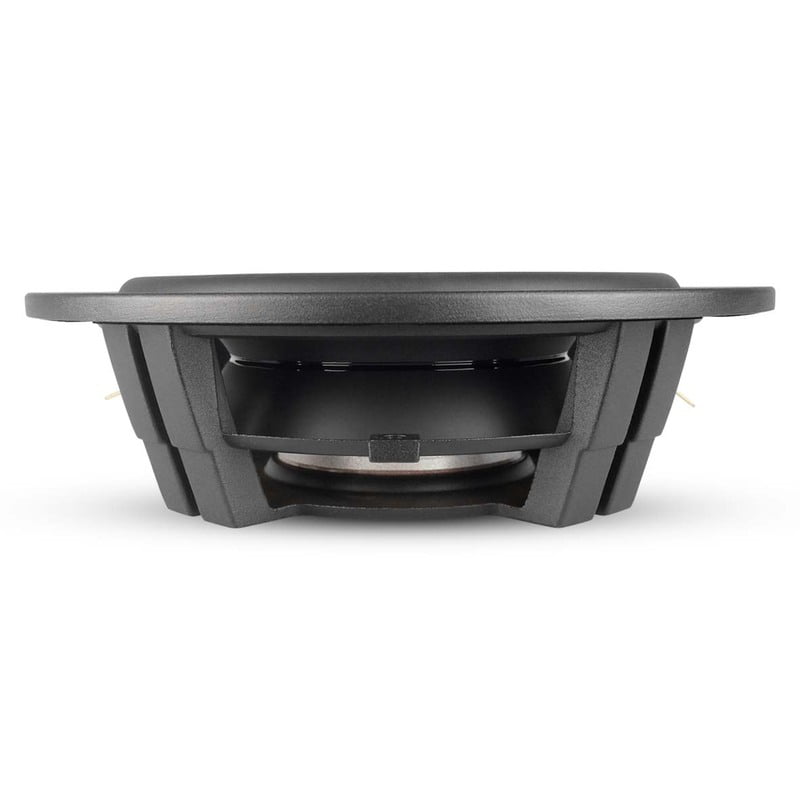

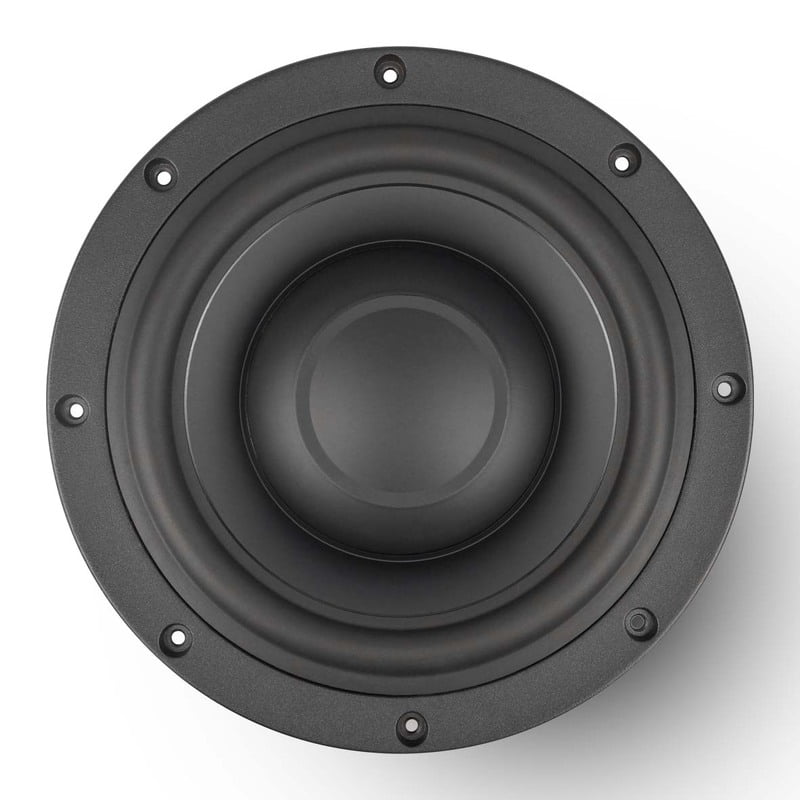

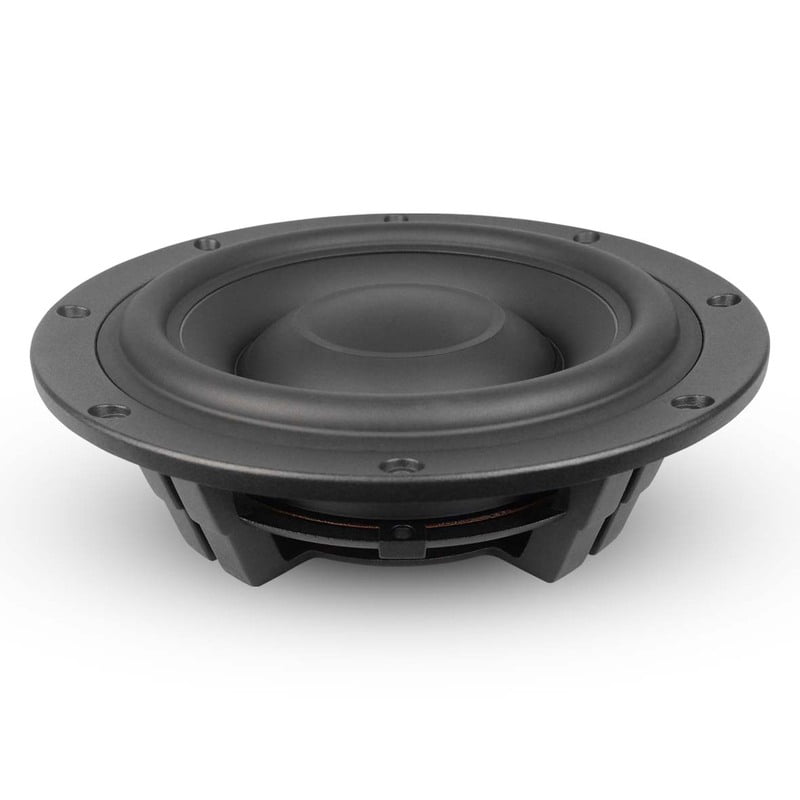

SB Acoustics SW26DBAC76-4 10'' Patented Shallow Subwoofer

SB Acoustics SW26DBAC76-4 10'' Patented Shallow Subwoofer

Regular price Rs. 27,900.00
Regular price Sale price Rs. 27,900.00
Sale Sold out
Tax included. Shipping calculated at checkout.

Features

  • Unique patented long throw shallow design
  • Vented cast aluminum chassis for optimum strength and low compression
  • Dual rigid aluminum cone structure
  • Non-conducting fiber glass coil former for minimum damping
  • Shorting ring in motor system for reduced distortion
  • 3 copper voice coil for improved power handling
  • Long life insulated silver lead wires
  • Powerful neodymium motor system

Specifications

  • Nominal Impedance 4 Ω
  • DC resistance, Re 3.2 Ω
  • Effective piston area, Sd 312 cm2
  • Voice coil diameter 75.5 mm
  • Voice coil height 30 mm
  • Air gap height 6 mm
  • Linear coil travel (p-p) 24 mm
  • Magnetic flux density 1.0 T
  • Magnet weight 281 g
  • Net weight 3.43 kg
  • Free air resonance, Fs 22 Hz
  • Sensitivity (2.83V/1m) 86 dB
  • Mechanical Q-factor, Qms 4.5
  • Electrical Q-factor, Qes 0.51
  • Total Q-factor, Qts 0.46
  • Moving mass incl. air,Mms 134 g
  • Force factor, Bl 10.8 Tm
  • Equivalent volume, Vas 54 ltr.
  • Compliance, Cms 0.39 mm/N
  • Mechanical loss, Rms 4.1 kg/s
  • Rated power handling* 200 W

* IEC 268-5, T/S parameters measured on drive units that are broken in.
