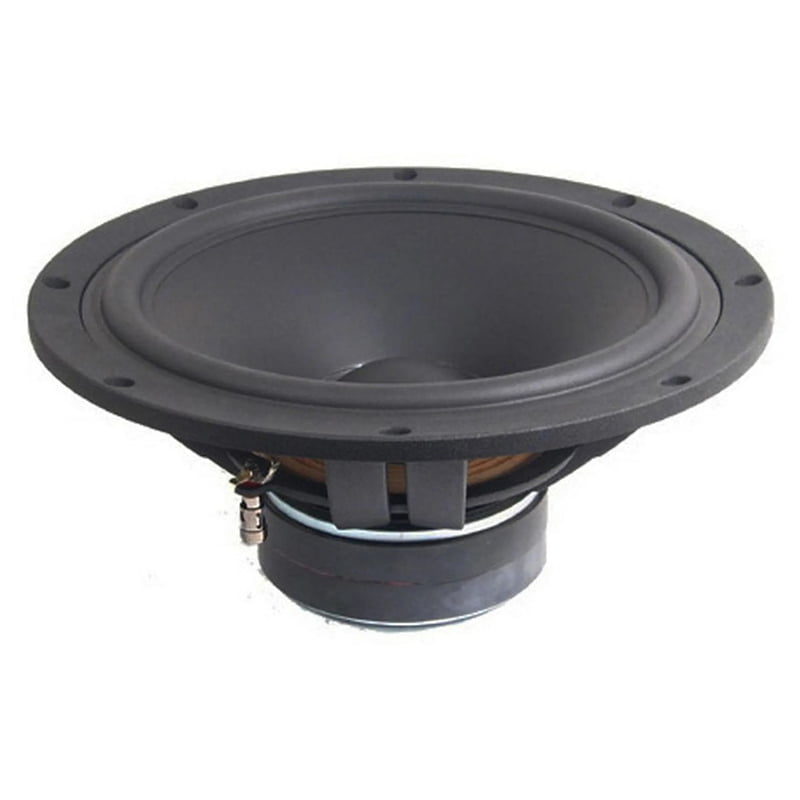

SB Acoustics SB34NRX75-16 12'' Hard paper cone Woofer

SB Acoustics SB34NRX75-16 12'' Hard paper cone Woofer

Regular price Rs. 20,900.00
Regular price Sale price Rs. 20,900.00
Sale Sold out
Tax included. Shipping calculated at checkout.

Features

  • Designed for open baffle
  • High flow venting center pole
  • 3″ CCAW voice coil
  • Low dampening surround
  • Non-inductive voice coil former
  • Proprietary cone materials made-in-house
  • Cast Aluminium chassis

Specifications

  • Nominal Impedance 16 Ω
  • DC resistance, Re 14.0 Ω
  • Voice coil inductance, Le 3.2 mH
  • Effective piston area, Sd 508 cm2
  • Voice coil diameter 75.6 mm
  • Voice coil height 28 mm
  • Air gap height 6 mm
  • Linear coil travel (p-p) 22 mm
  • Magnetic flux density 0.9 T
  • Magnet weight 2.1 kg
  • Net weight 6.0 kg
  • Free air resonance, Fs 25 Hz
  • Sensitivity (2.83V/1m) 86 dB
  • Mechanical Q-factor, Qms 6.65
  • Electrical Q-factor, Qes 0.80
  • Total Q-factor, Qts 0.71
  • Moving mass incl. air,Mms 72 g
  • Force factor, Bl 14.1 Tm
  • Equivalent volume, Vas 205 liters
  • Compliance, Cms 0.56 mm/N
  • Mechanical loss, Rms 1.7 kg/s
  • Rated power handling* 120 W

* IEC 268-5, T/S parameters measured on drive units that are broken in.
