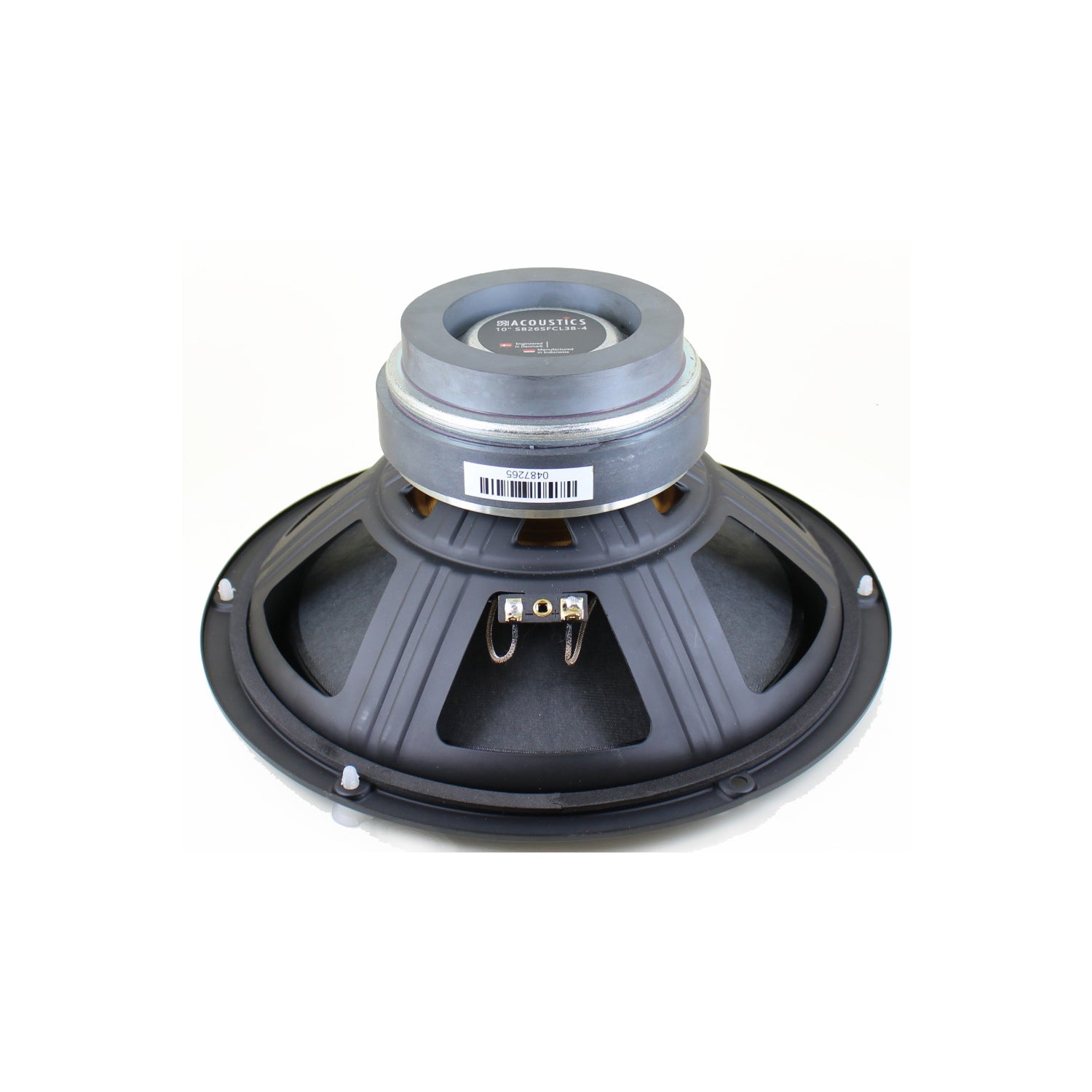

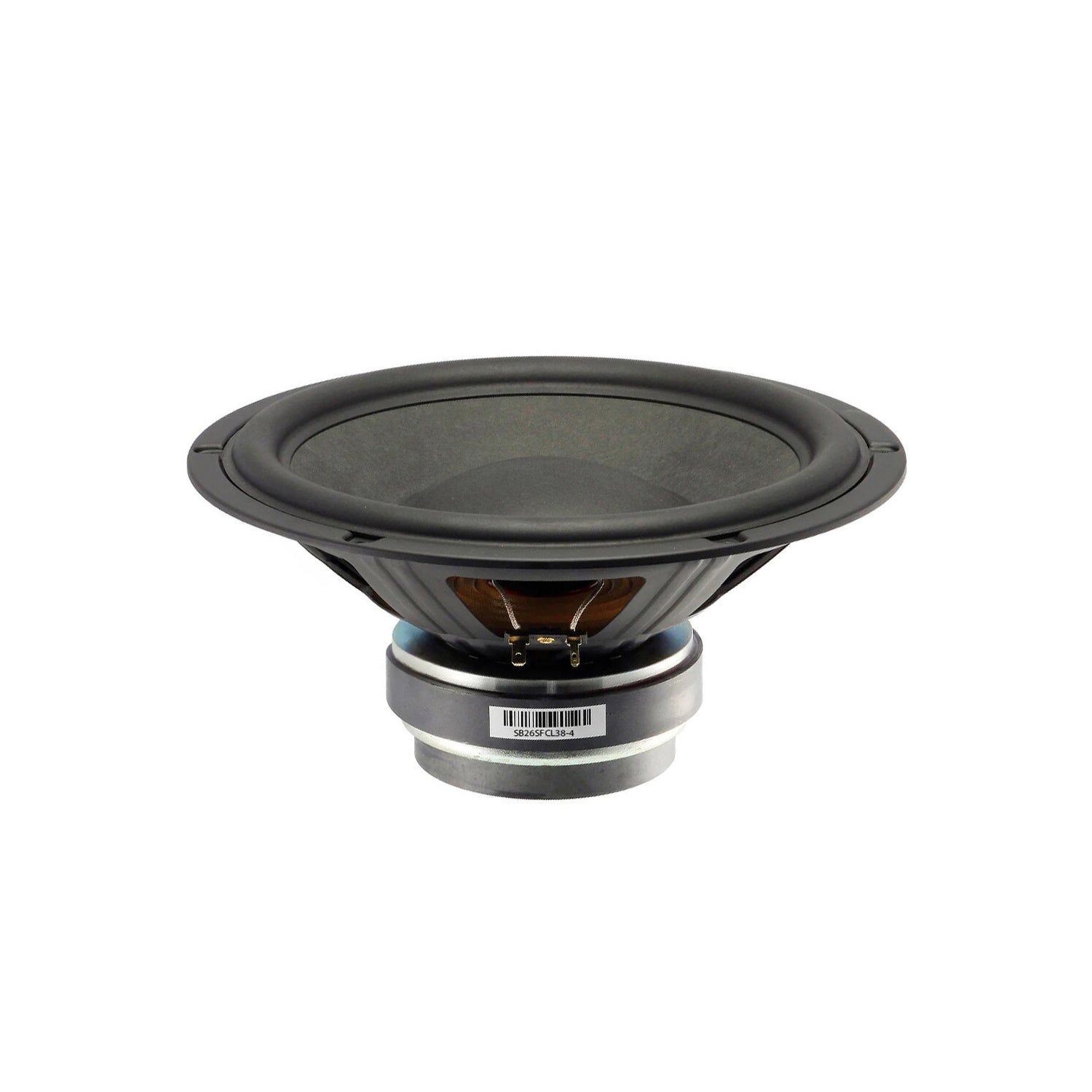

SB Acoustics SB26SFCL38-4 10" Paper Cone Woofer

Rs. 9,899.00 Rs. 8,900.00 Save 10% Sold out

Price Includes GST

Notify Me When in Stock

SB Acoustics SB26SFCL38-4 10" Paper Cone Woofer

Features

  • Hard pressed vented paper cone
  • Durable rubber surround
  • Symmetric suspension
  • Non-conductive coil former
  • Long life litz wires
  • Vented chassis
  • Bucking magnet

Specs

  • Nominal Impedance 4 Ω
  • DC resistance, Re 3.3 Ω
  • Voice coil inductance, Le 1.0 mH
  • Effective piston area, Sd 346 cm2
  • Voice coil diameter 38.5 mm
  • Voice coil height 21.8 mm
  • Air gap height 6 mm
  • Linear coil travel (p-p) 15.8 mm
  • Magnetic flux density 1.05 T
  • Magnet weight 1.1 kg
  • Net weight 2.9 kg
  • Free air resonance, Fs 27.4 Hz
  • Sensitivity (2.83V/1m) 91 dB
  • Mechanical Q-factor, Qms 5.59
  • Electrical Q-factor, Qes 0.47
  • Total Q-factor, Qts 0.43
  • Moving mass incl. air,Mms 55.2 g
  • Force factor, Bl 8.2 Tm
  • Equivalent volume, Vas 104 liters
  • Compliance, Cms 0.61 mm/N
  • Mechanical loss, Rms 1.7 kg/s
  • Rated power handling* 80 W

* IEC 268-5, T/S parameters measured on drive units that are broken in.
