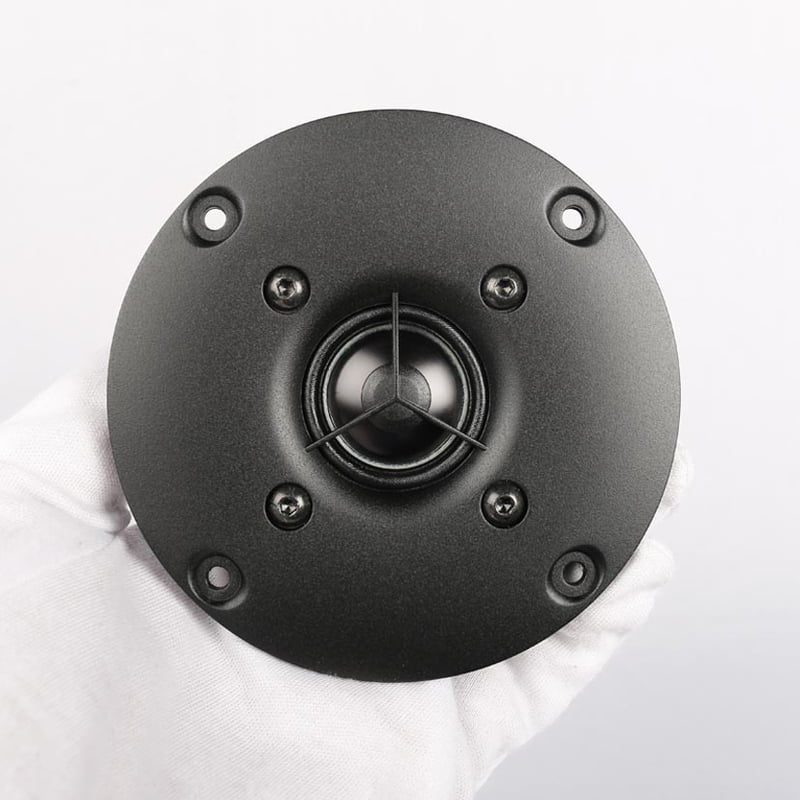

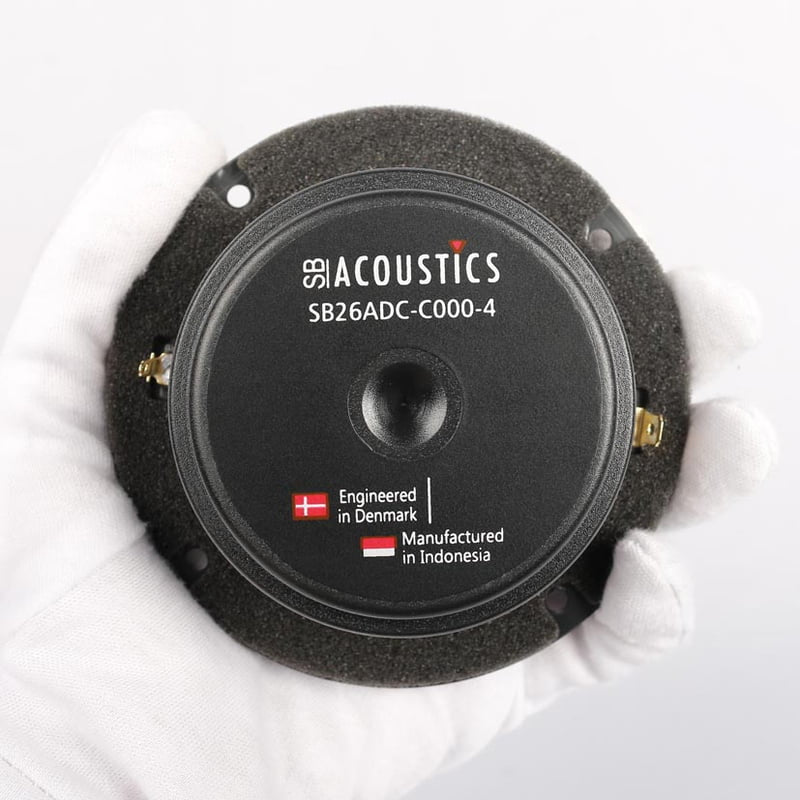

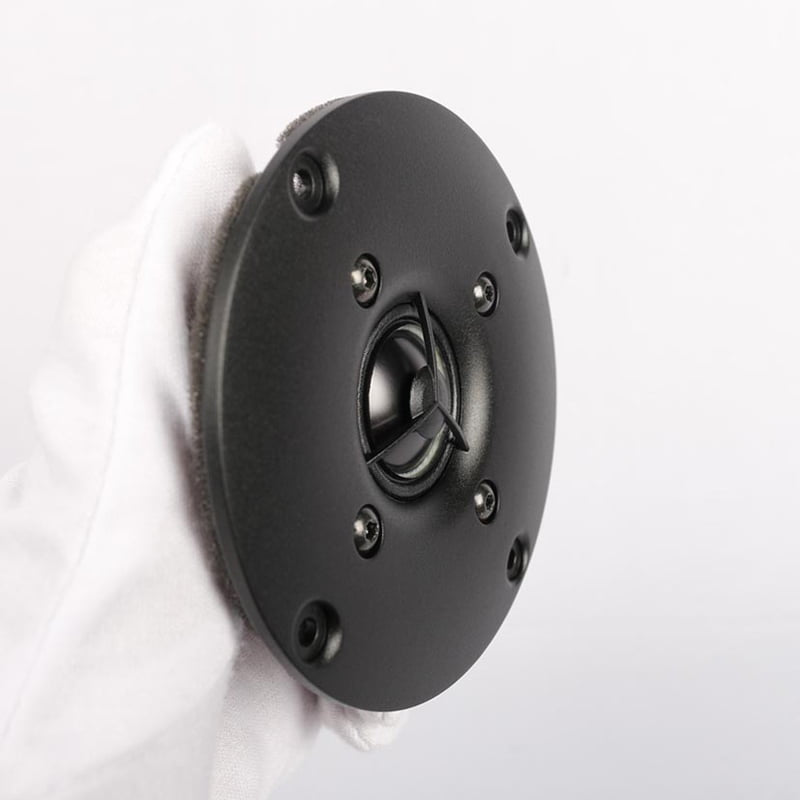

SB Acoustics SB26ADC-C000-4 Aluminum Dome Tweeter

Rs. 5,200.00 Sold out

Price Includes GST

Notify Me When in Stock

Features:

  • Phase optimized diaphragm design for coherent high frequency radiation
  • Copper cap for reduced voice coil inductance and minimum phase shift
  • Saturation controlled motor system for low distortion
  • Non-reflective rear chamber with optimized damping for improved dynamics
  • Flow optimized vented pole piece for optimum coupling to rear chamber
  • CCAW voice coil for low moving mass
  • Long life silver lead wires
  • Low resonance frequency

Specifications:

  • Nominal Impedance 4 Ω
  • DC resistance, Re 3.2 Ω
  • Voice coil inductance, Le 0.04 mH
  • Effective piston area, Sd 6.2 cm2
  • Voice coil diameter 25.4 mm
  • Voice coil height 1.3 mm
  • Air gap height 2.5 mm
  • Linear coil travel (p-p) 1.2 mm
  • Moving mass incl. air, Mms 0.38 g
  • Free air resonance, Fs 680 Hz
  • Sensitivity (2.83 V / 1 m) 90 dB
  • Mechanical Q-factor, Qms 2.7
  • Electrical Q-factor, Qes 1.88
  • Total Q-factor, Qts 1.11
  • Force factor, Bl 1.6 Tm
  • Rated power handling* 120 W
  • Magnetic flux density 1.15 T
  • Magnet weight 0.22 kg
  • Net weight 0.5 kg

* IEC 268-5, high-pass Butterworth, 2600 Hz, 12 dB/oct.


Customer Reviews

Based on 1 review
100%
(1)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
S
Shuvam
Excellent general purpose metal dome

This is a superb tweeter, with a performance very similar to the SB26CDC. It can be crossed over quite low too. I have done distortion measurements, and distortion is very low in the operating range. I am using this with other aluminium cone drivers for a 3-way tower.
