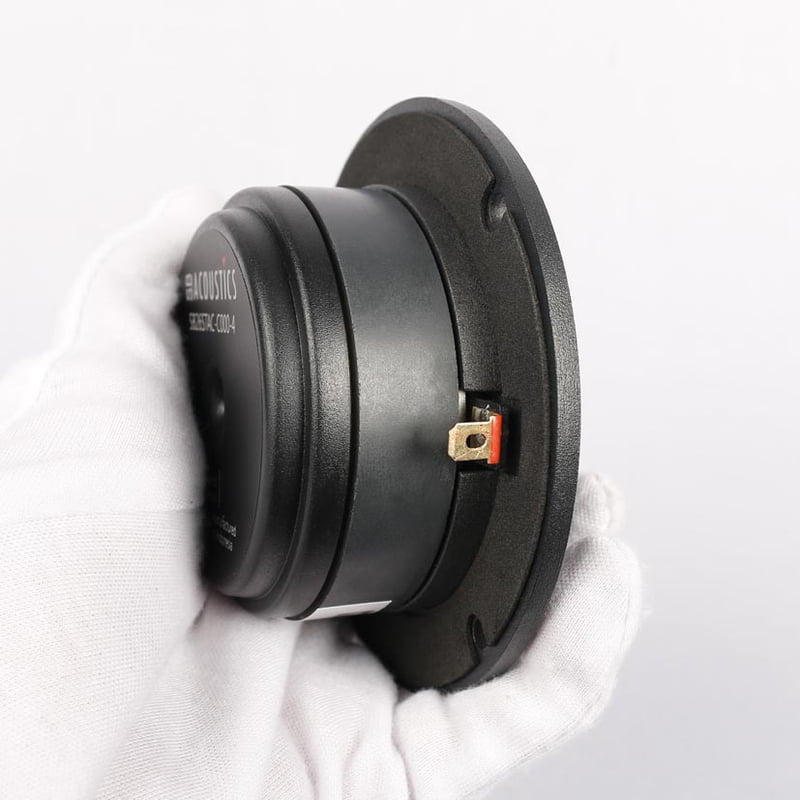

SB Acoustics SB26STAC-C000-4 1'' Soft Dome Tweeter

Rs. 4,847.70 Rs. 4,290.00 Save 12% Sold out

Price Includes GST

Notify Me When in Stock

SB Acoustics SB26STAC-C000-4 1'' Soft Dome Tweeter

Features

  • Cast aluminium faceplate
  • Copper cap for reduced voice coil inductance and minimum phase shift
  • Non-reflective rear chamber with optimized damping for improved dynamics
  • Flow optimized vented pole piece for optimum coupling to rear chamber
  • Fine weave soft fabric dome for smooth frequency response
  • Saturation controlled motor system for low distortion
  • CCAW voice coil for low moving mass
  • Long life silver lead wires
  • Low resonance frequency


Specifications

  • Nominal Impedance 4 ?
  • DC resistance, Re 3.2 ?
  • Voice coil inductance, Le 0.4 mH
  • Effective piston area, Sd 6.2 cm2
  • Voice coil diameter 25.4 mm
  • Voice coil height 1.3 mm
  • Air gap height 2.5 mm
  • Linear coil travel (p-p) 1.2 mm
  • Moving mass incl. air, Mms 0.3 g
  • Free air resonance, Fs 750 Hz
  • Sensitivity (2.83 V / 1 m) 91.5 dB
  • Mechanical Q-factor, Qms 3.0
  • Electrical Q-factor, Qes 1.78
  • Total Q-factor, Qts 1.12
  • Force factor, Bl 1.6 Tm
  • Rated power handling* 120 W
  • Magnetic flux density 1.15 T
  • Magnet weight 0.22 kg
  • Net weight 0.53 kg

* IEC 268-5, high-pass Butterworth, 2600 Hz, 12 dB/oct.
