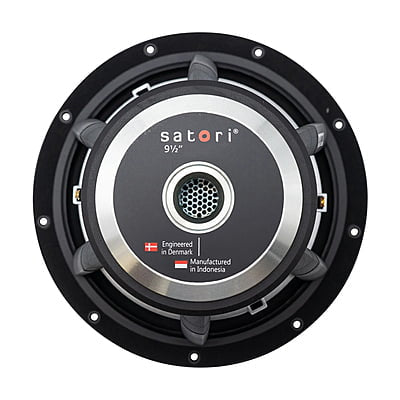

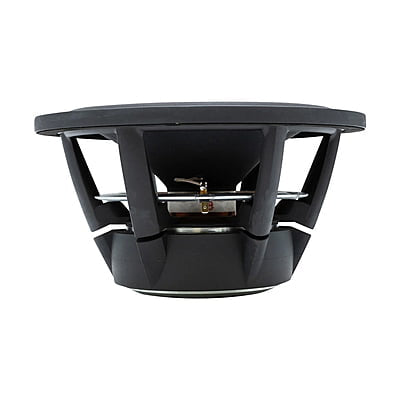

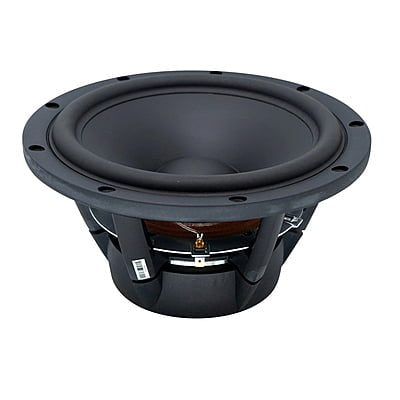

SB Acoustics Satori WO24P-8 9.5'' Egyptian Papyrus Cone Woofer

SB Acoustics Satori WO24P-8 9.5'' Egyptian Papyrus Cone Woofer

Product SKU: Satori WO24P-8 9.5''

₹22,700.00

Description
Reviews

SB Acoustics Satori WO24P-8 9.5'' Egyptian Papyrus Cone Woofer Features Hard paper cone for improved piston operation (made in-house) Large optimized motor system with under-cut pole piece and dual shorting rings Vented aerodynamic cast aluminium chassis for optimum strength and low compression Soft low damping rubber surround for optimum transient response Linear symmetric suspension design for improved dynamic performance Non-conducting fibre glass voice coil former for minimum damping Long life silver lead wires attached 180° apart for improved stability Vented pole piece for reduced compression Low piston to chassis diameter ratio Gasket and bolt hole protrusions for reduced coupling to speaker cabinet Specifications Nominal Impedance 8 ? DC resistance, Re 5.8 ? Voice coil inductance, Le 0.56 mH Effective piston area, Sd 255 cm2 Voice coil diameter 49.5 mm Voice coil height 23 mm Air gap height 6 mm Linear coil travel (p-p) 17 mm Magnetic flux density 1.1 T Magnet weight 1.36 kg Net weight 3.7 kg Free air resonance, Fs 24.5 Hz Sensitivity (2.83V/1m) 88 dB Mechanical Q-factor, Qms 5.7 Electrical Q-factor, Qes 0.41 Total Q-factor, Qts 0.38 Moving mass incl. air,Mms 44.5 g Force factor, Bl 9.9 Tm Equivalent volume, Vas 87.5 liters Compliance, Cms 0.95 mm/N Mechanical loss, Rms 1.2 kg/s Rated power handling* 90 W * IEC 268-5, T/S parameters measured on drive units that are broken in.

Outstanding and one-of-a-kind

This is a very peculiar driver. It is large enough to deliver room-filling bass, it's almost 10". It has an Fs of 24Hz, which lets it go really low in a small enclosure. It can be used in a sealed 20-litre enclosure almost without any equalisation and will still deliver bass deep enough for double-bass or rock. And it does all this together with a flat SPL curve which goes into the KHz range, with a moving mass much lighter than the SB29NRX classical high-end woofer. This one has a moving mass of 44g while that has 78g. So, this can handle higher frequencies than almost any other 10" woofer. I'm using this in a 3-way sealed box with an MR13 mid and a TW29R tweeter, for an all-Satori high-end monitor speaker. It may be larger than desktop speakers but will be average size for general monitors. I'll drive this with a Hypex FA123 with active equalisation and crossover.

This is the only 10" driver I can think of which can mate with the Satori 2" dome midrange, because the dome needs to be crossover at 1KHz or higher, 4th order.
