SB Audience Horn 225
FEATURES:
- 1" Throat entry
- 90° x 70° nominal coverage
- Excellent loading down to 600 Hz
- Constant directivity
| Nominal Coverage / Horizontal | 90 degrees |
| Nominal Coverage / Vertical | 70 degrees |
| Directivit Factory (Q) | 8 |
| Directivit Index (Di) | 9 dB |
| Sensitivity On Driver 1W @1m, on Axis | 109 dB |
| Frequency Response @-10dB | 600 Hz - 20KHz |
| Throat Diameter | 25.4mm (1 in) |
| Minimum Recommended Crossover | 700 Hz |
| Horn Material | ABS Plastic |
| Horn Finish | Black |
| Mouth Height | 223 mm (8.77 in) |
| Mouth Width | 223 mm (8.77 in) |
| Length | 161 mm (6.33 in) |
| Net Weight | 0.58 Kg (1.27 lb) |
| Gross Weight | 0.7 Kg (1.54 lb) |
| Carton Dimensions (WxDxH) | 256 x 256 x 170 mm |
| Mechanical Connection of driver | Bolt on |
| Horizontal Baffle Cutout Dimensions (Front Mount) | 184.5mm (7.26 in) |
| Vertical | 181 mm (7.12 in) |

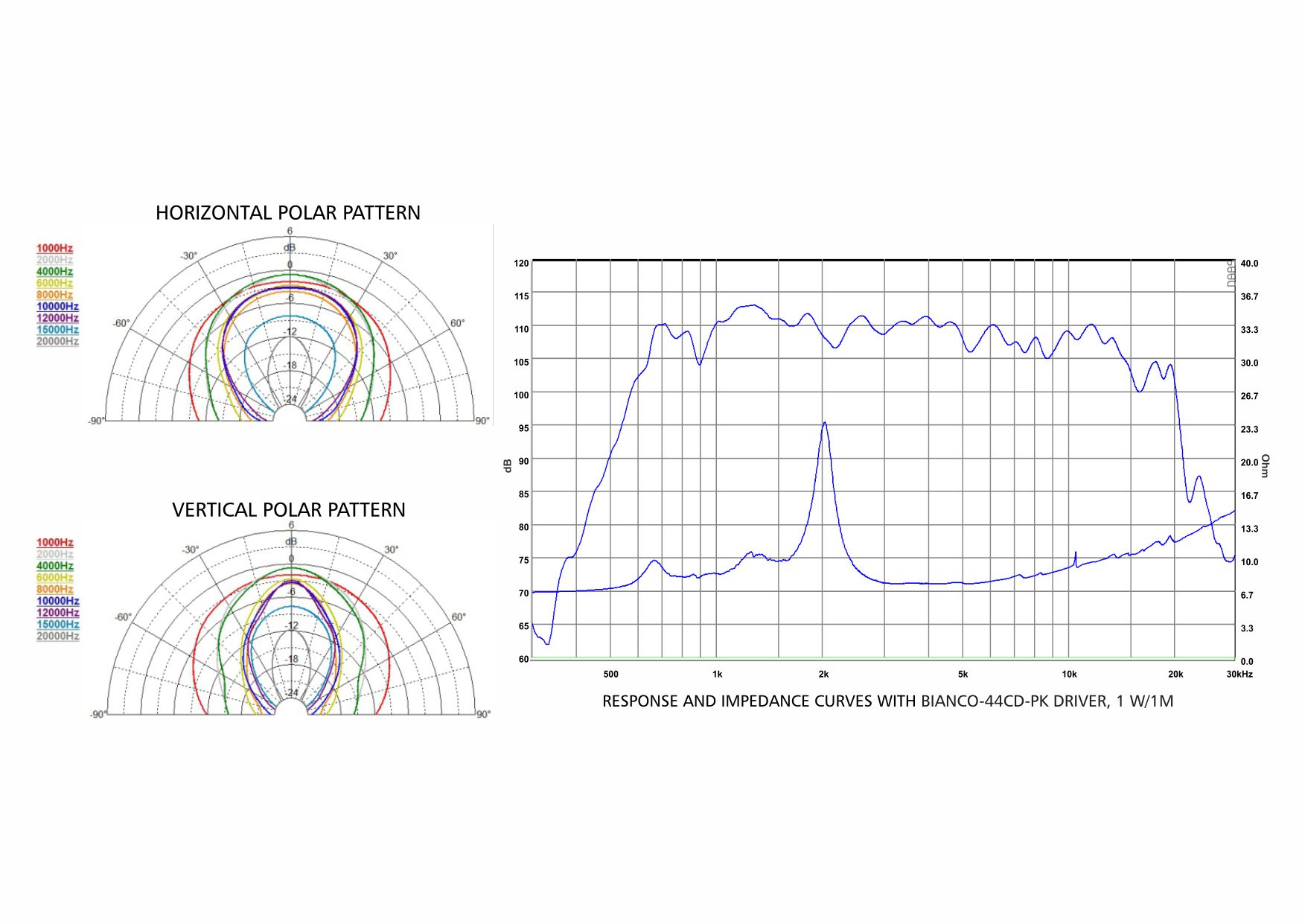

Notes: Measured with BIANCO-44CD-PK Driver, 1Khz - 15Khz Average

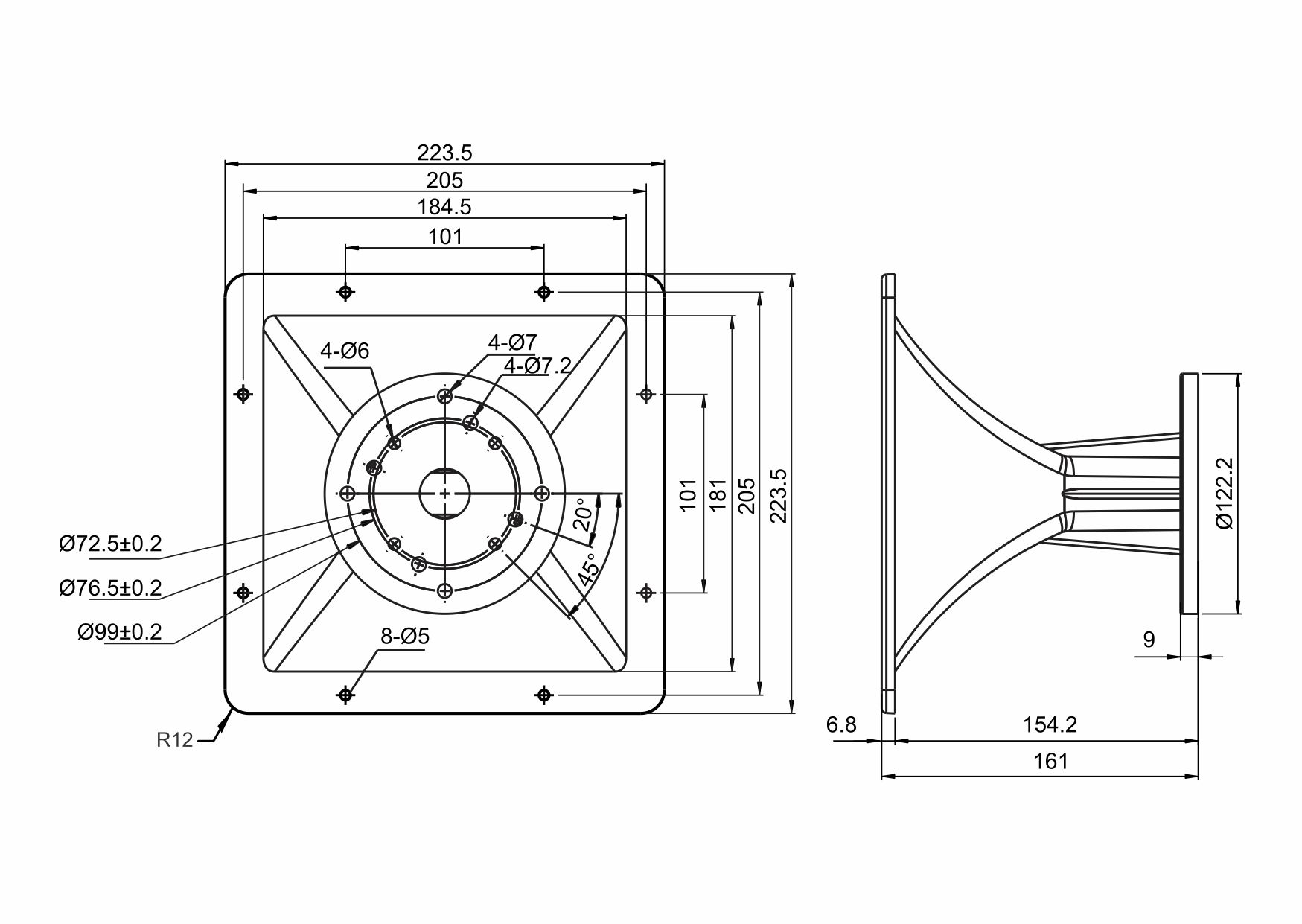

Contact us for CNC Drawings
