SB Acoustics SB26CDC-C000-4 26mm Ceramic Dome Tweeter

Rs. 6,496.00 Rs. 5,800.00 Save 11% Sold out

Price Includes GST

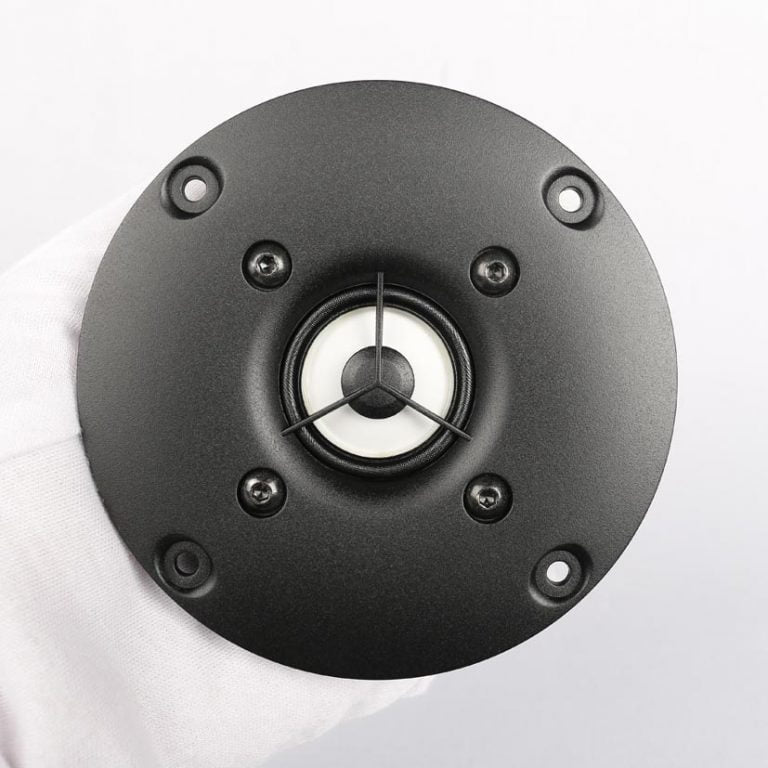

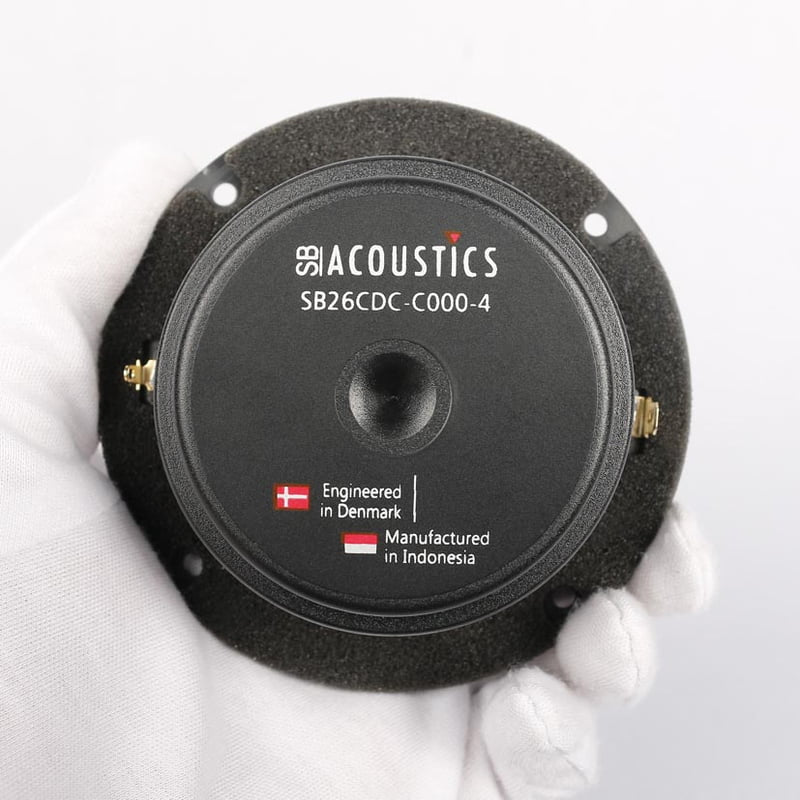

SB Acoustics SB26CDC-C000-4 26mm Ceramic Dome Tweeter

Features:

  • Aluminium/Ceramic Dome
  • Phase optimized diaphragm design for coherent high frequency radiation
  • Copper cap for reduced voice coil inductance and minimum phase shift
  • Saturation controlled motor system for low distortion
  • Non-reflective rear chamber with optimized damping for improved dynamics
  • Flow optimized vented pole piece for optimum coupling to rear chamber
  • CCAW voice coil for low moving mass
  • Long life silver lead wires
  • Low resonance frequency


Specifications:

  • Nominal Impedance 4 ?
  • DC resistance, Re 3.2 ?
  • Voice coil inductance, Le 0.04 mH
  • Effective piston area, Sd 6.2 cm2
  • Voice coil diameter 25.4 mm
  • Voice coil height 1.3 mm
  • Air gap height 2.5 mm
  • Linear coil travel (p-p) 1.2 mm
  • Moving mass incl. air, Mms 0.38 g
  • Free air resonance, Fs 690 Hz
  • Sensitivity (2.83V/1m) 89 dB
  • Mechanical Q-factor, Qms 2.55
  • Electrical Q-factor, Qes 2.00
  • Total Q-factor, Qts 1.12
  • Force factor, Bl 1.6 Tm
  • Rated power handling* 100 W
  • Magnetic flux density 1.15 T
  • Magnet weight 0.22 kg
  • Net weight 0.5 kg

* IEC 268-5, high-pass Butterworth, 2600 Hz, 12 dB/oct.

Customer Reviews

Based on 1 review
100%
(1)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
S
Shuvam
Excellent general purpose tweeter

This is an excellent tweeter at a very affordable price point. It is a metal dome but does not have any harshness associated with metal domes. I have done swept-sine harmonic distortion measurements too, and the distortion profile is astonishingly low. It can be crossed over at 1.8K or 2K fourth order. With tweeters like this one and the related model, the SB26ADC, it is hard to justify why one needs to use anything more expensive.
