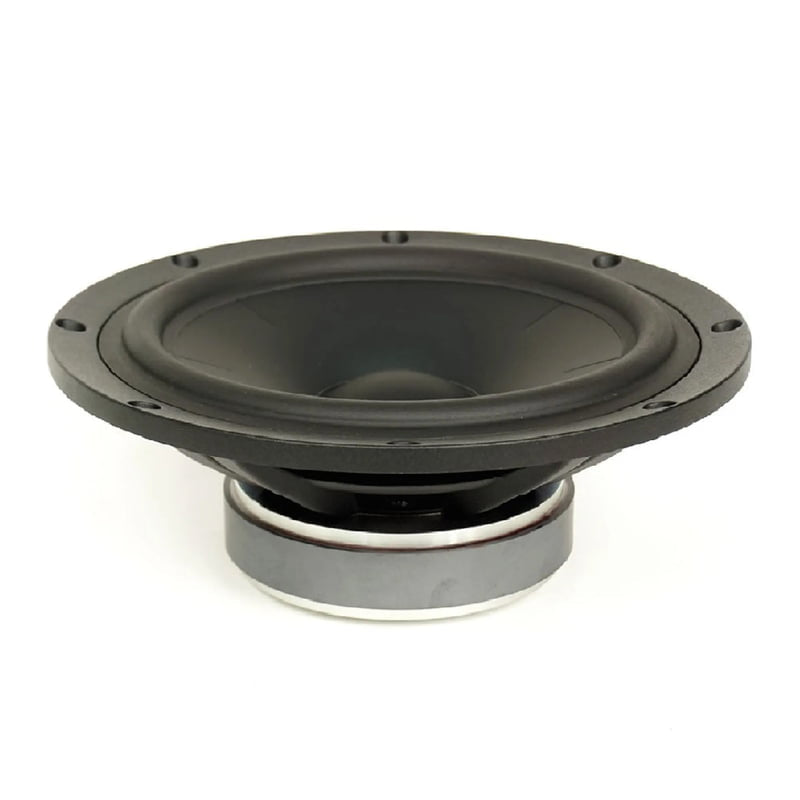

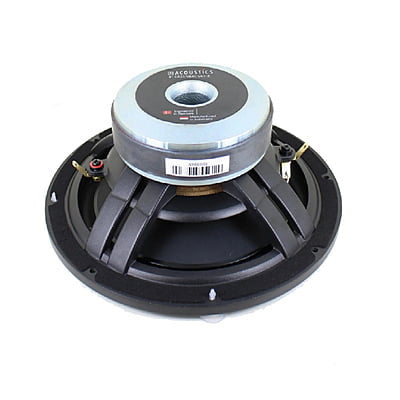

SB Acoustics SB23NBACS45-8 8'' Black Aluminium Cone Woofer

Rs. 13,516.00 Rs. 12,400.00 Save 8% Sold out

Price Includes GST

Notify Me When in Stock

SB Acoustics SB23NBACS45-8 8'' Black Aluminium Cone Woofer

Features

  • Soft low damping rubber surround for improved transient response
  • Geometrically reinforced aluminium cone for improved break-up control
  • Shorting ring in motor system for reduced distortion
  • Vented pole piece for reduced compression
  • Vented cast aluminium chassis for optimum strength and low compression
  • Shallow design
  • Non-conducting fibre glass voice coil former for minimum damping
  • CCAW voice coil for reduced moving mass
  • Long life silver lead wires


Specifications

  • Nominal Impedance 8 ?
  • DC resistance, Re 5.7 ?
  • Voice coil inductance, Le 0.37 mH
  • Effective piston area, Sd 216 cm2
  • Voice coil diameter 45.5 mm
  • Voice coil height 19 mm
  • Air gap height 6 mm
  • Linear coil travel (p-p) 13 mm
  • Magnetic flux density 0.9 T
  • Magnet weight 0.8 kg
  • Net weight 2.7 kg
  • Free air resonance, Fs 25 Hz
  • Sensitivity (2.83V/1m) 87.5 dB
  • Mechanical Q-factor, Qms 5.54
  • Electrical Q-factor, Qes 0.43
  • Total Q-factor, Qts 0.40
  • Moving mass incl. air,Mms 31.2 g
  • Force factor, Bl 7.9 Tm
  • Equivalent volume, Vas 93.4 liters
  • Compliance, Cms 1.43 mm/N
  • Mechanical loss, Rms 0.8 kg/s
  • Rated power handling* 60 W

* IEC 268-5, T/S parameters measured on drive units that are broken in.
