What is a 2 Way Crossover Design? | 2way Speakers Design

What is a 2-Way Speaker?

A 2-way speaker is a type of loudspeaker system that consists of two separate drivers:

Woofer – Handles low and midrange frequencies.
Tweeter – Reproduces high frequencies.

These two drivers work together to cover the full range of audible sound, typically splitting the frequency spectrum at a designated crossover point. The woofer usually operates from the lower bass frequencies up to the midrange, while the tweeter handles the high frequencies above the crossover point.

What is a 2-Way Crossover Design?

A 2-way crossover is an electronic or passive circuit that divides the audio signal into two frequency bands, directing them to the appropriate drivers. The main purpose of the crossover is to ensure a smooth transition between the woofer and the tweeter while minimizing distortion and phase issues.

There are two main types of 2-way crossovers:

Passive Crossover (most common) – Uses capacitors, inductors, and resistors to split the signal after the amplifier stage.
Active Crossover – Uses electronic circuits to split the signal before amplification, requiring separate amplifiers for each driver.

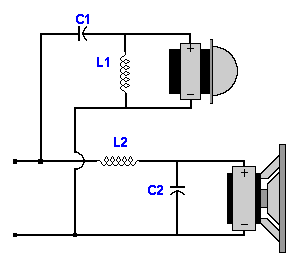

Key Components of a 2-Way Passive Crossover:

High-Pass Filter (HPF) – Blocks low frequencies and allows high frequencies to pass to the tweeter.
Low-Pass Filter (LPF) – Blocks high frequencies and allows low frequencies to pass to the woofer.
Inductors & Capacitors – Used to create the HPF and LPF, determining the crossover frequency.
Resistors – Help in level matching and impedance correction.

Advantages of a 2-Way Speaker System:

✅ Simpler design compared to 3-way or multi-driver systems.
✅ Efficient crossover design, reducing phase and time alignment issues.
✅ Cost-effective while still delivering full-range sound.
✅ Compact size, making them ideal for various applications, including home audio, car audio, and professional PA systems.
